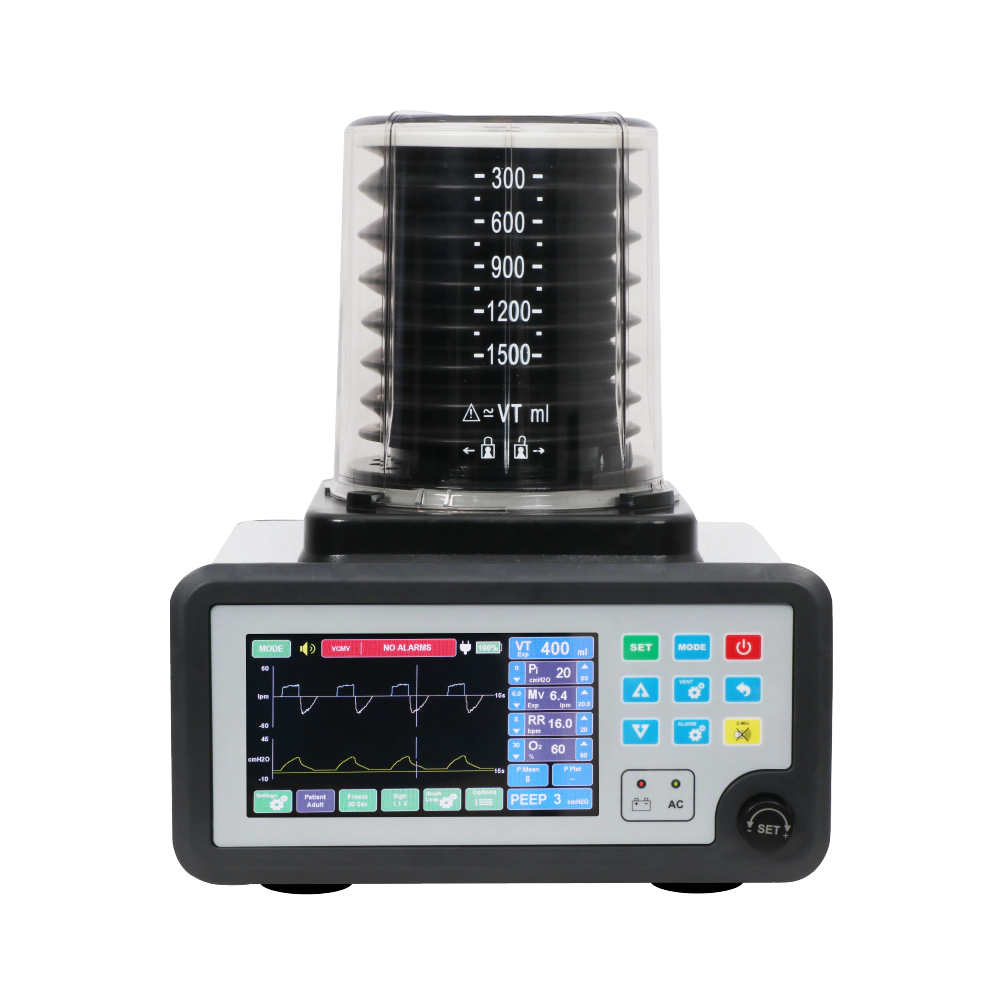

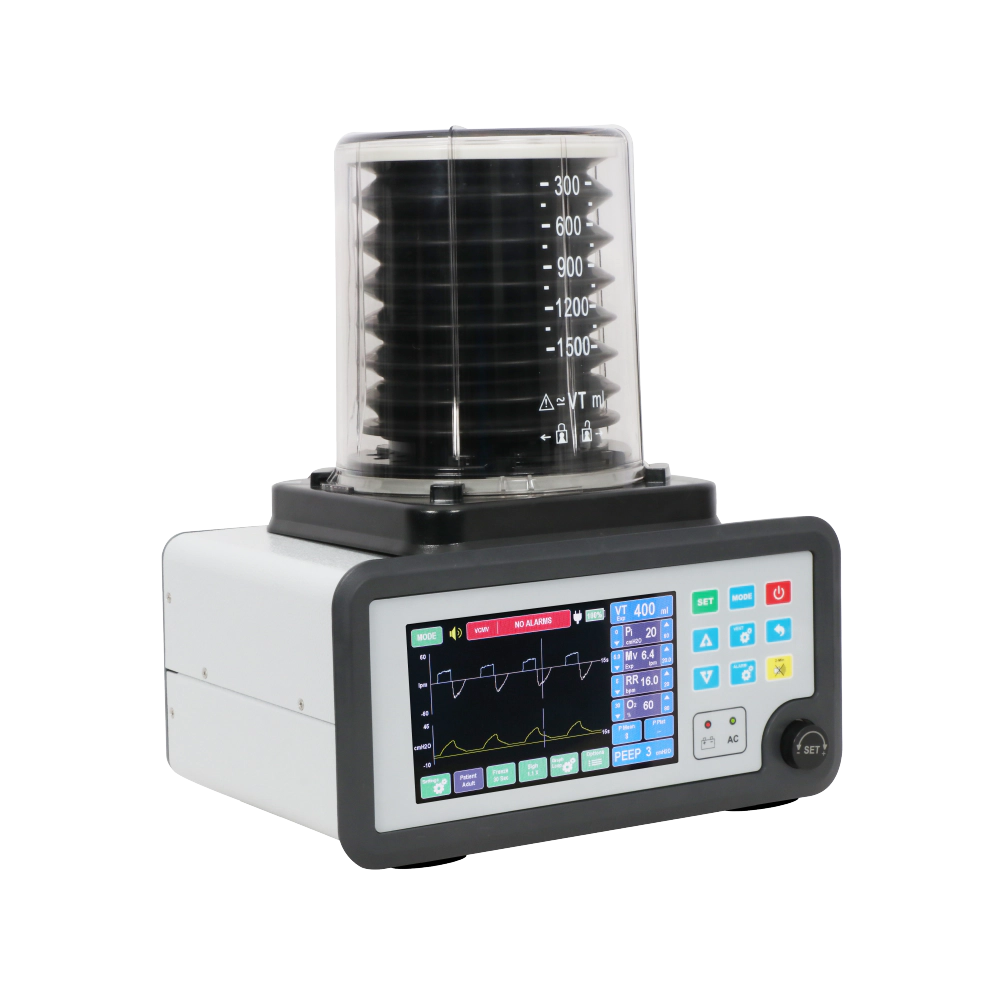

Anesthesia Ventilator
AVS-180
The AVS-180, a sophisticated microprocessor-based anesthesia ventilator, offers user-friendly operation for both adult and pediatric patients. Its 7-inch TFT touchscreen display provides clear visualization of flow, volume, and pressure graphs and loops. Equipped with a lithium-ion battery backup for up to 2 hours, AVS-180 ensures uninterrupted ventilation. This versatile ventilator supports various modes, including VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, and Standby, making it compatible with all types of anesthesia machines. The implementation of fresh gas compensation enhances the safety of anesthesia delivery.
PARAMETERS | AVS-180 |
Mode of Operation | VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG and Standby |
Patient Type | Adult and Child [Selectable] |
I:E Ratio | 4:1 to 1:4 |
Plateau | 0 to 50% |
Trigger | 0.5 to 5.0 cmH2O |
Tidal Volume | 50 to 1500 ml |
Respiratory Rate | 1 to 60 Bpm |
Ti | 0.2 to 8.0 Sec |
Pi | 5 to 60 cmH2O |
PEEP | 1 to 30 cmH2O |
Pressure Support | 5 to 40 cmH2O |
Ti max | 0.2 to 8.0 Sec |
Backup RR | 6 to 60 Bpm |
Backup Mode | VCMV, V-SIMV, PCMV, P-SIMV and PRVC |
Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, Pi, P Mean, P Plat, PEEP Obtained |
Alarms | Low and High for Pressure, RR, Minute Volume and FIO2, Active patient, Patient disconnected, Driving Gas failure, low battery indication, Apnea |
Loop Types | Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure [Selectable Any Two] |
Graph Types | Flow , Pressure & Volume[Selectable Any Two] |
Display | 7″ TFT with touch Screen |
Power Input | 20 W |
Gas Input Pressure | 3~6 Bar |
Battery Backup | 2 hours (Lithium-ion) |
Dimension | 316 x 270 x 374 mm ( L x W x H) |
