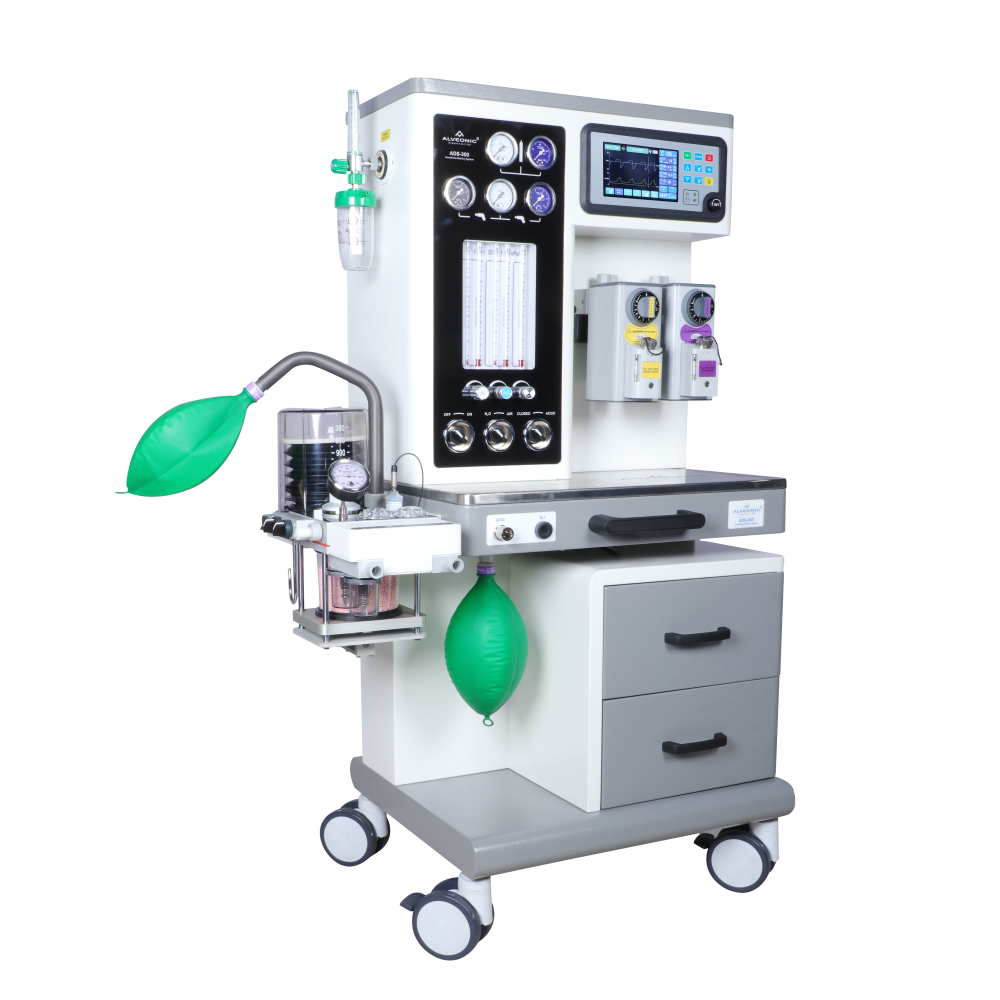

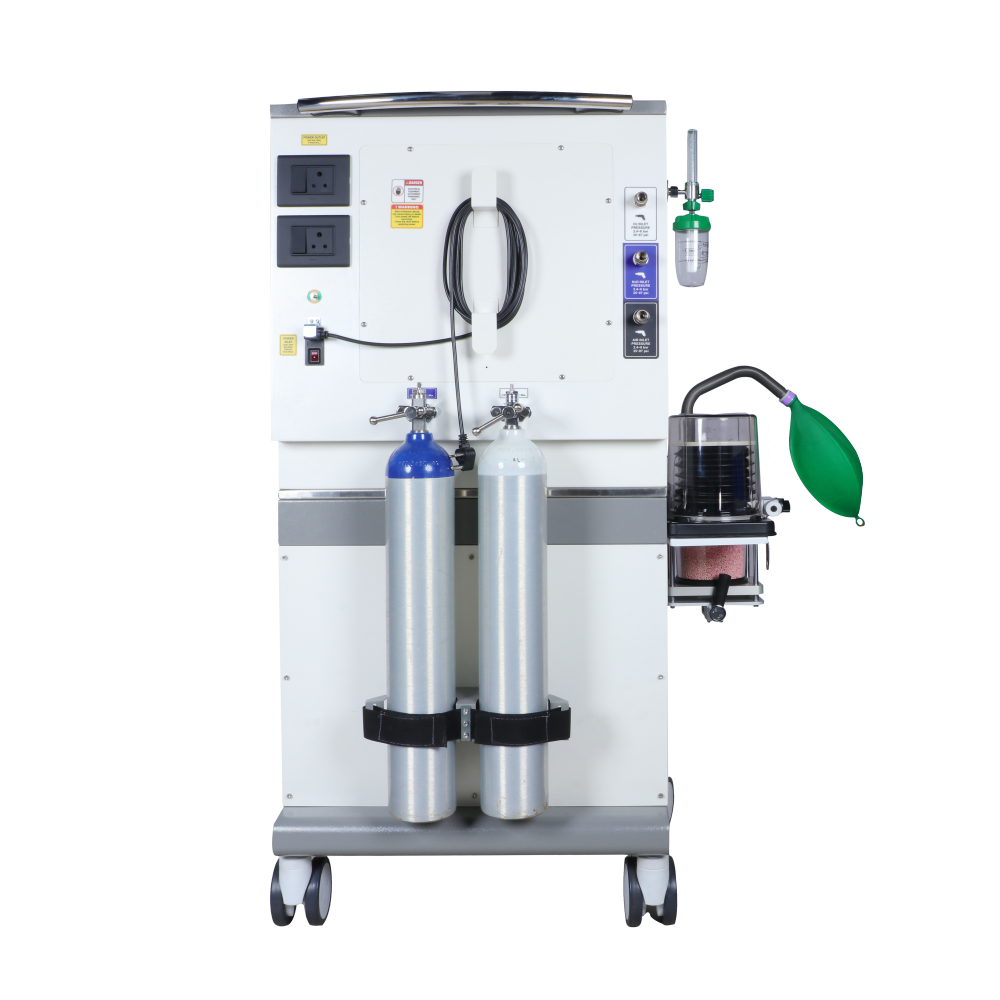

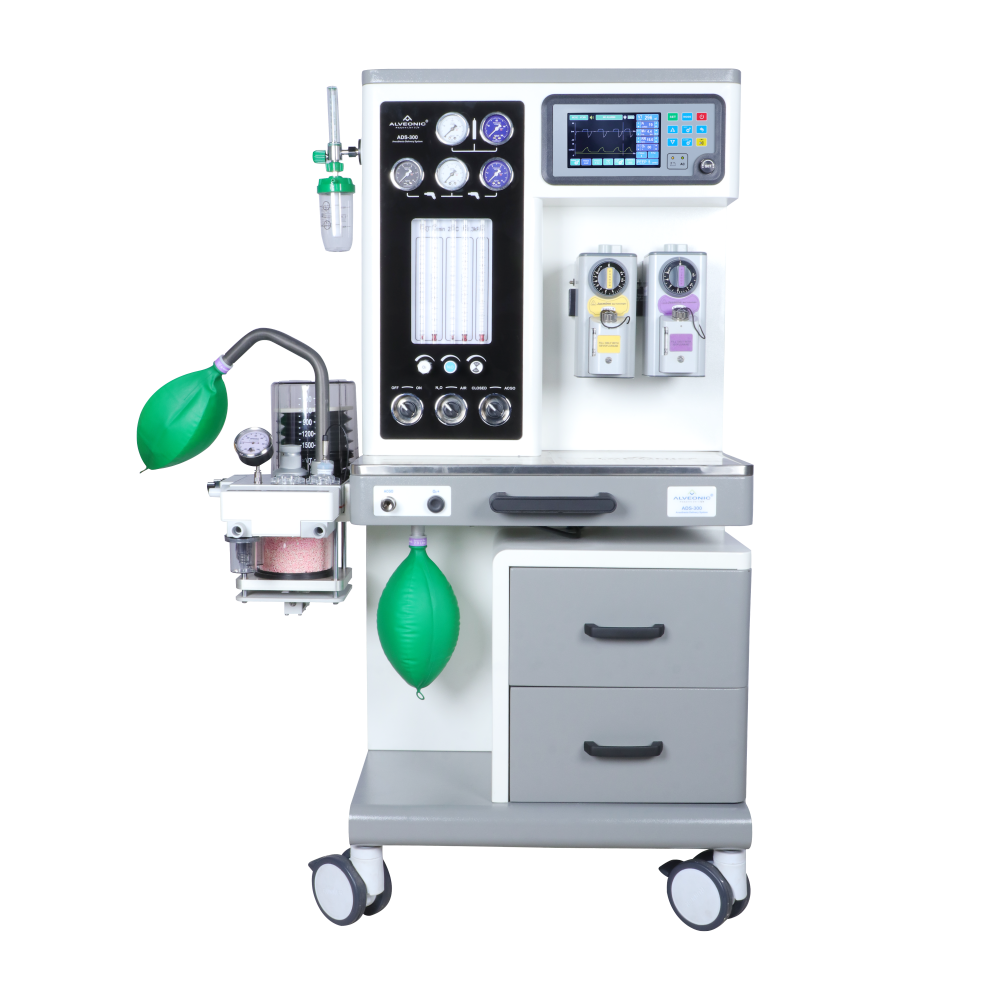

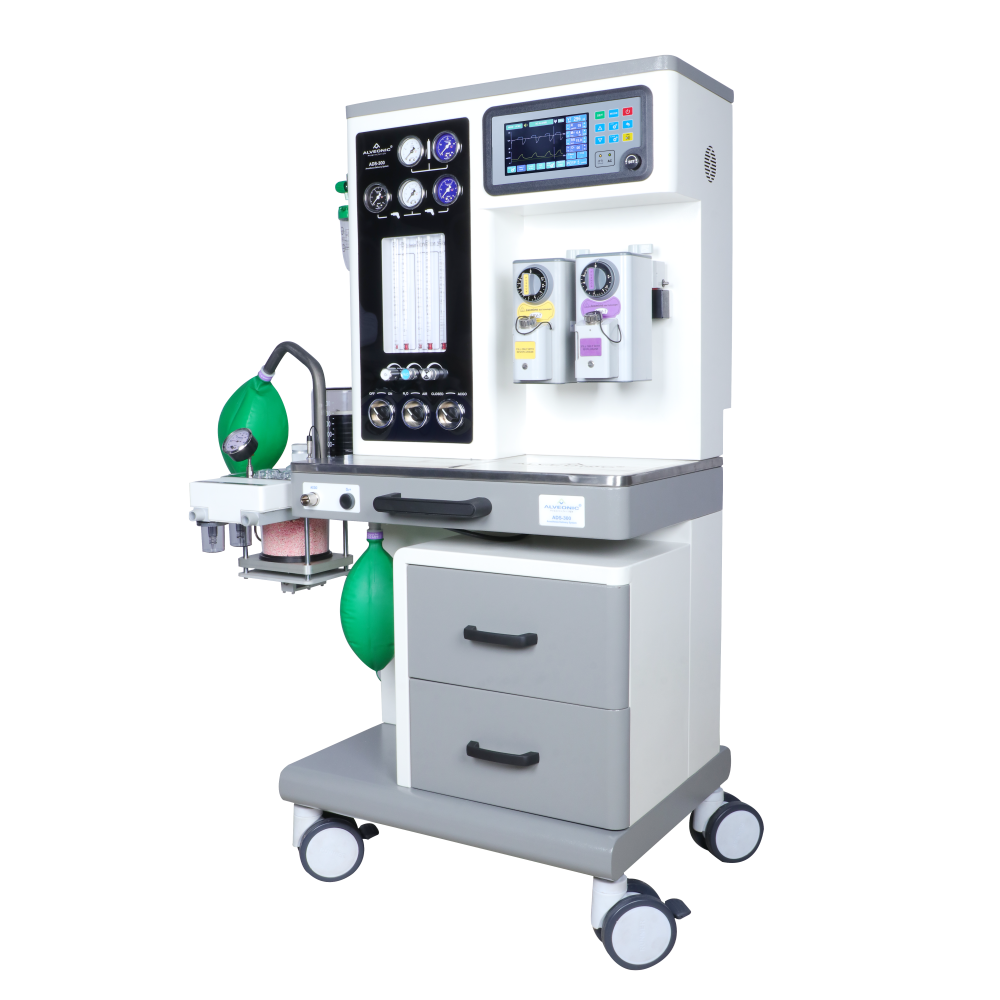

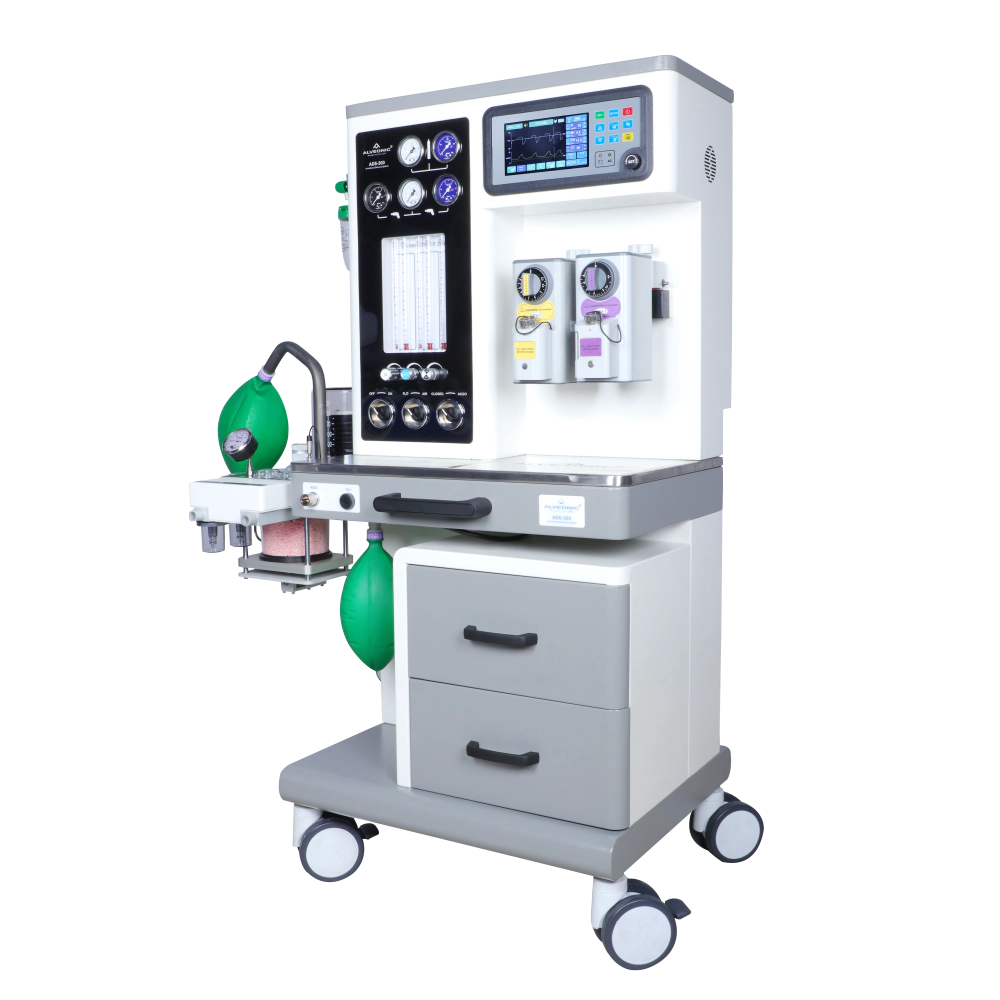

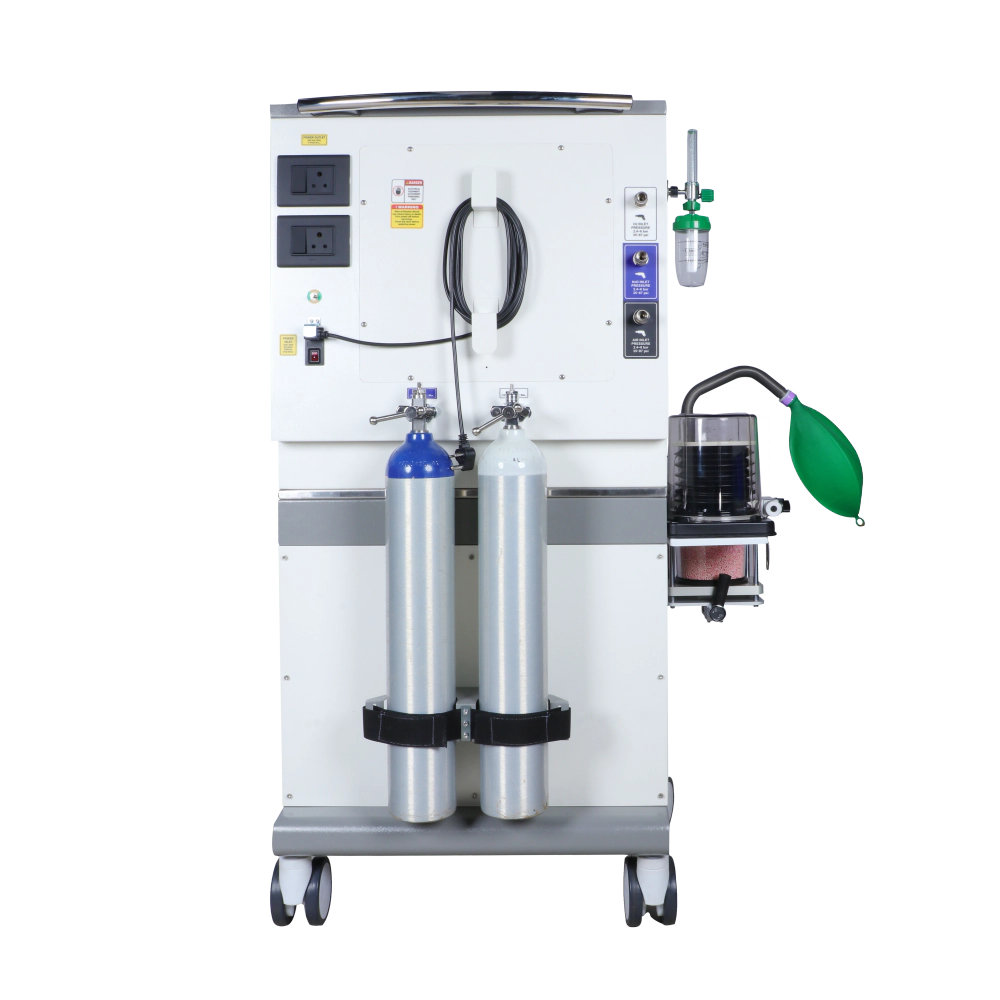

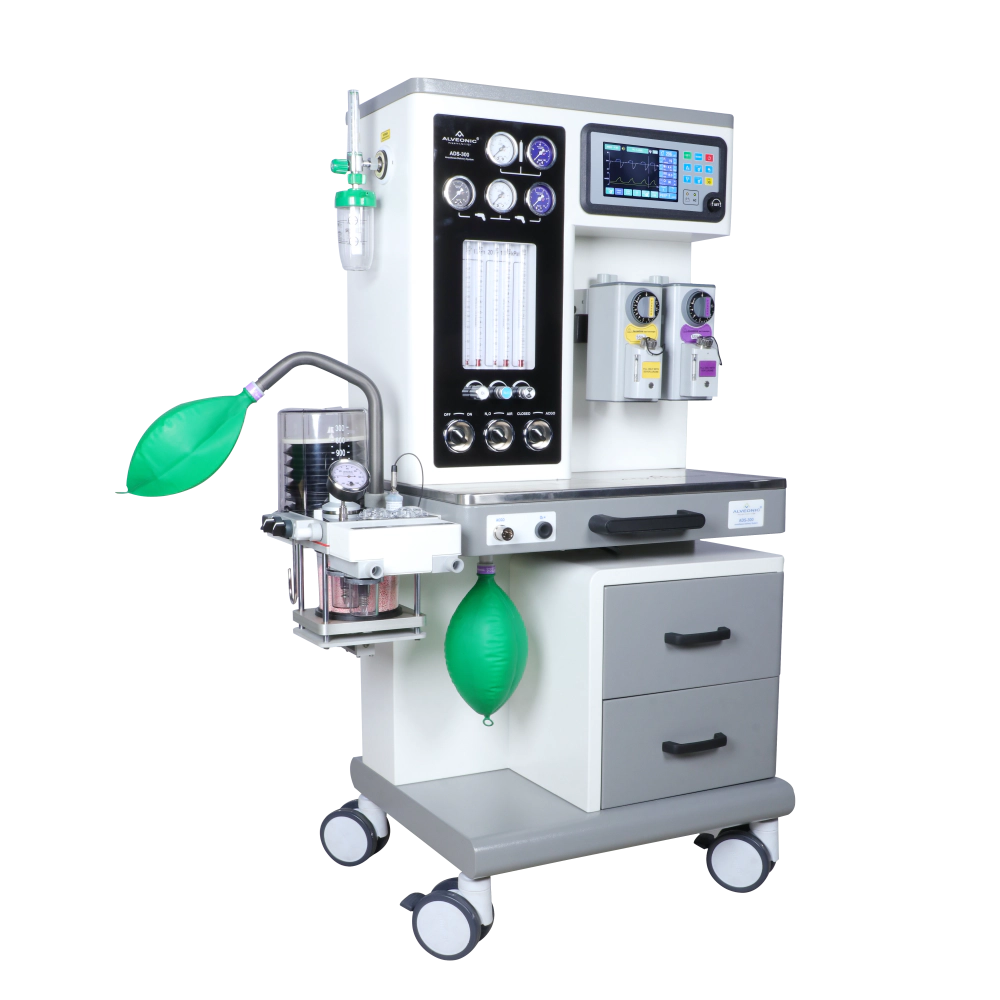

ADS-300 Anesthesia workstation with AVS-270 Ventilator + 3 Gas
ADS-300 configured with AVS-270 anesthesia ventilator and a 3-gas 5-tube high-accuracy rotameter configuration. Integrated with the ACS-2 gas-driven circle absorber using air as the driving gas.
AVS-270 is an advanced, user-friendly, microprocessor-based anesthesia ventilator suitable for adult and pediatric patients. AVS-270 has a 7” TFT touch screen display with volume and pressure graphs. AVS-270 can be operated in VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, and Standby modes.
| PARAMETERS | AVS-270 |
| Mode of Operation | VCMV, V- SIMV, PCMV, P-SIMV, PRVC, PSV, BAG and Standby. |
| Patient Type | Adult and Child [Selectable] |
| I: E Ratio | 4:1 to 1:4 |
| Plateau | 0 to 50% |
| Trigger | 0.5 to 5.0 cmH2O |
| Tidal Volume | 50 to 1500 ml. |
| Respiratory Rate | 1 to 60 Bpm |
| Ti | 0.2 to 8.0 Sec |
| Pi | 5 to 60 cmH2O |
| PEEP | 3 to 30 cmH2O |
| Pressure Support | 5 to 40 cmH2O |
| Ti max | 0.2 to 8.0 Sec |
| Backup RR | 6 to 60 Bpm |
| Backup Mode | VCMV, V- SIMV, PCMV, P-SIMV and PRVC. |
| Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, Pi, P Mean, P Plat, PEEP Obtained. |
| Alarms | Low and High for Pressure, RR, Minute Volume and FIO2, Active patient, Patient disconnected, Driving Gas failure, low battery indication, Apnea. |
| Loop Types | Flow vs Pressure, Flow vs Volume & Volume vs Pressure [Selectable Any Two] |
| Graph Types | Flow , Pressure & Volume[Selectable Any Two] |
| Fresh Gas Decoupling | Enabled |
| Flow Sensor | Internal & Permanent |
| Display | 7″ TFT with touch Screen. |
| Power Input | 65 W |
| Driving Gas | Air |
| Gas Input Pressure | 3~6 Bar (Pipeline) / 4-150Bar (Cylinder) |
| Battery Backup | 2 hours (Lithium-ion) |
| Flow Meter Type | 3 Gas (5 Tubes) |
