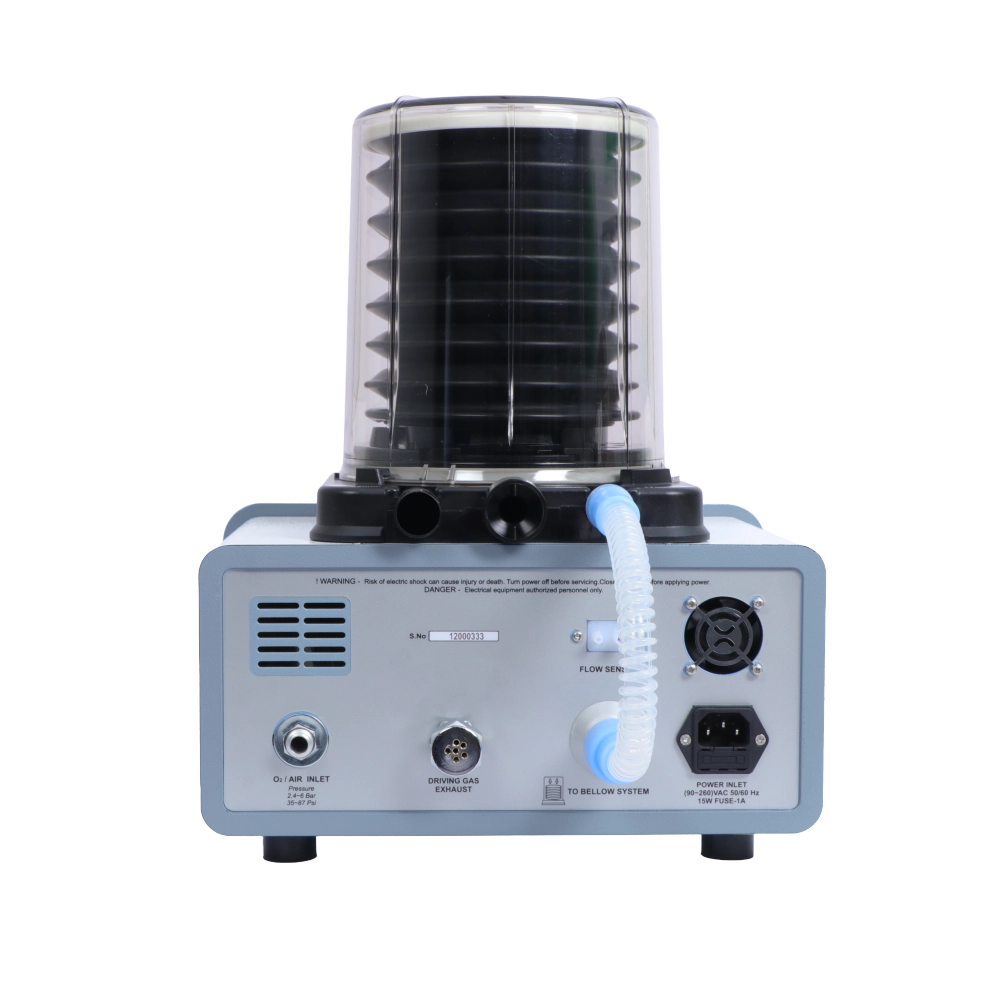

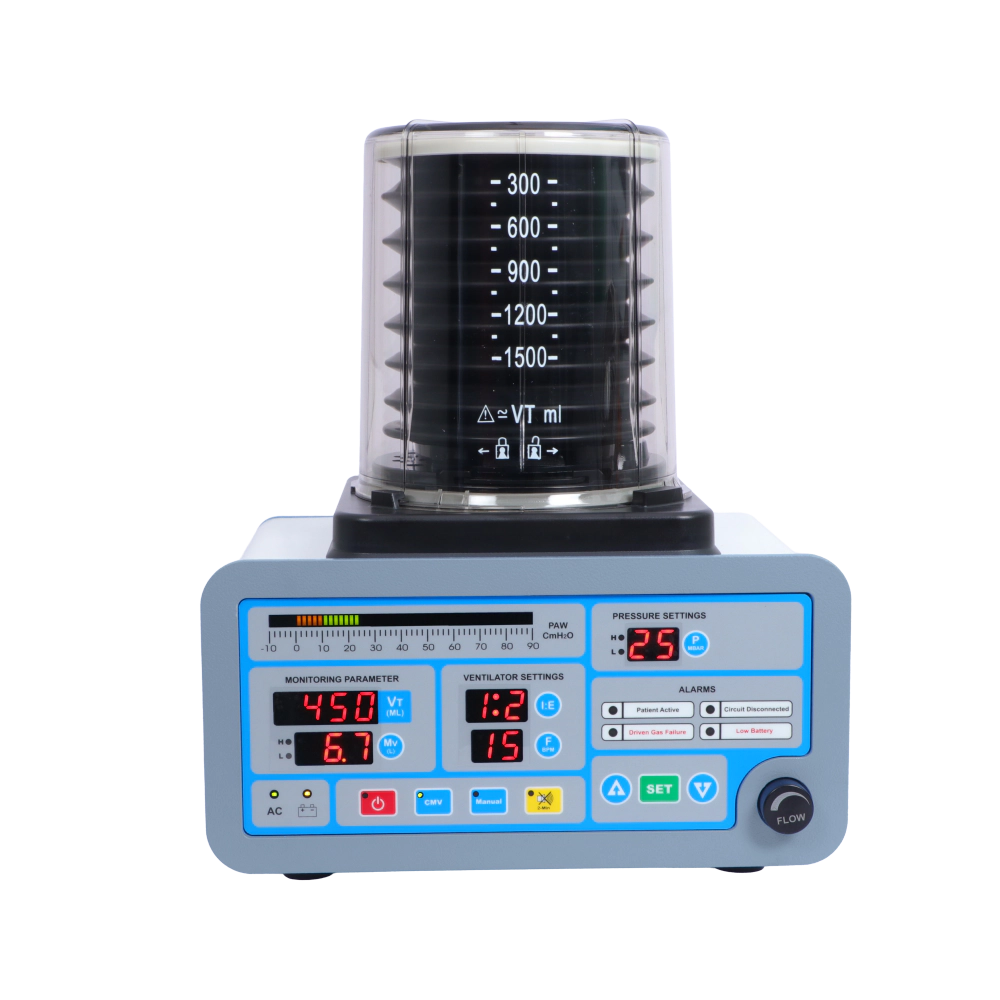

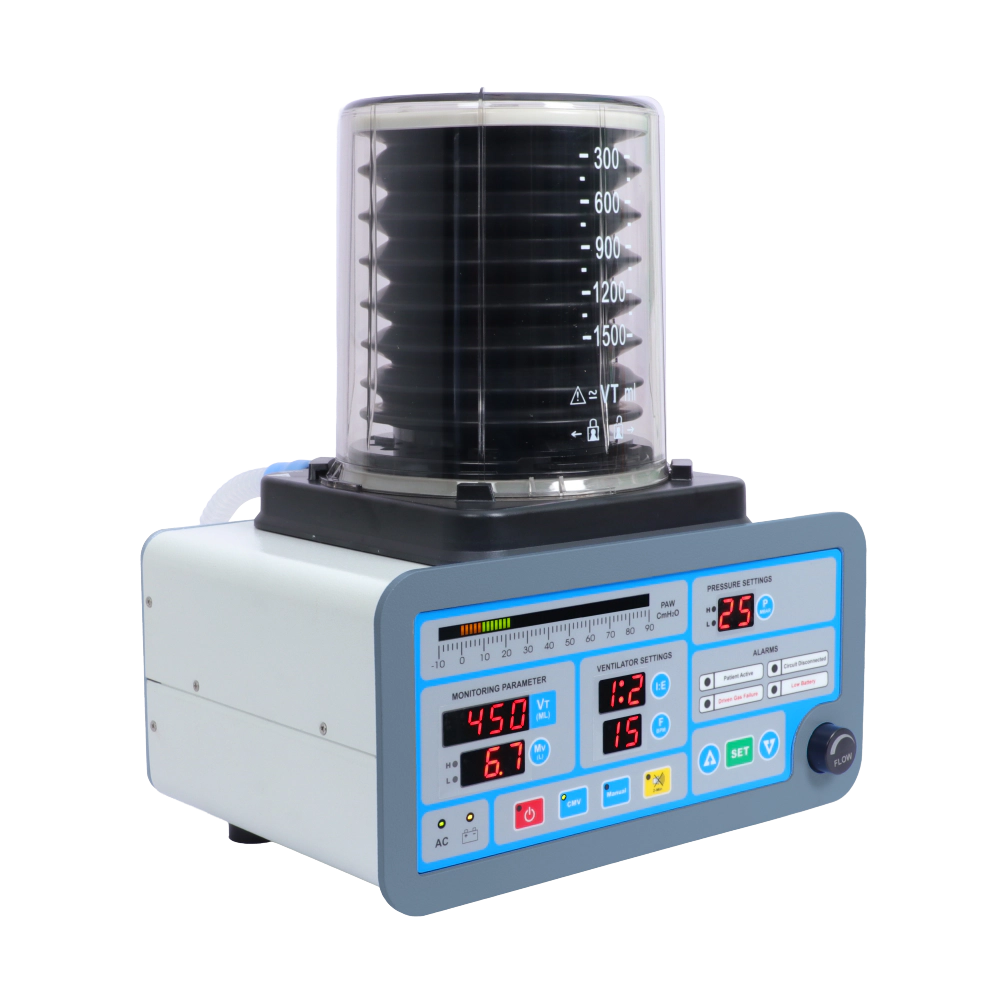

Anesthesia Ventilator
AVS-120
The AVS-120 is an advanced anesthesia ventilator that offers precise volume and time-cycled ventilation for adult and pediatric patients. It has Volume and Pressure displays. This model has a lithium-ion battery backup for up to 2 hours. The AVS-120 can be operated in CMV, Manual and Standby modes. Compatible with a wide range of anesthesia machines, the AVS-120 is a versatile and reliable solution for surgical procedures.
| PARAMETERS | AVS-120 |
| Mode of Operation | CMV, Manual & Standby |
| I:E Ratio | 1:1, 1:2, 1:3 & 1:4 |
| Tidal Volume | 50 to 1500 ml |
| Respiratory Rate | 6 to 40 Bpm |
| High Pressure Limit | 5 to 60 cmH20 |
| Low Pressure Limit | O to 20 cmH20 |
| High Minute Volume | 3 to 50 Liters |
| Low Minute Volume | 0 to 47 Liters |
| Monitoring Parameters | Tidal Volume, Minute Volume and Pi |
| Alarms | Low and High for Pressure and Minute Volume, Active patient, Circuit disconnected, Driving Gas failure, low battery indication |
| Pressure Display | -10 to 90 cmH20 in LED graph |
| Power Input | 100-240 VAC 50/60 Hz 20 W |
| Gas Input Pressure | 3~6 Bar |
| Battery Backup | 2 hours (Lithium-ion) |
| Dimension | 316 x 270 x 374 mm ( L x W x H) |
