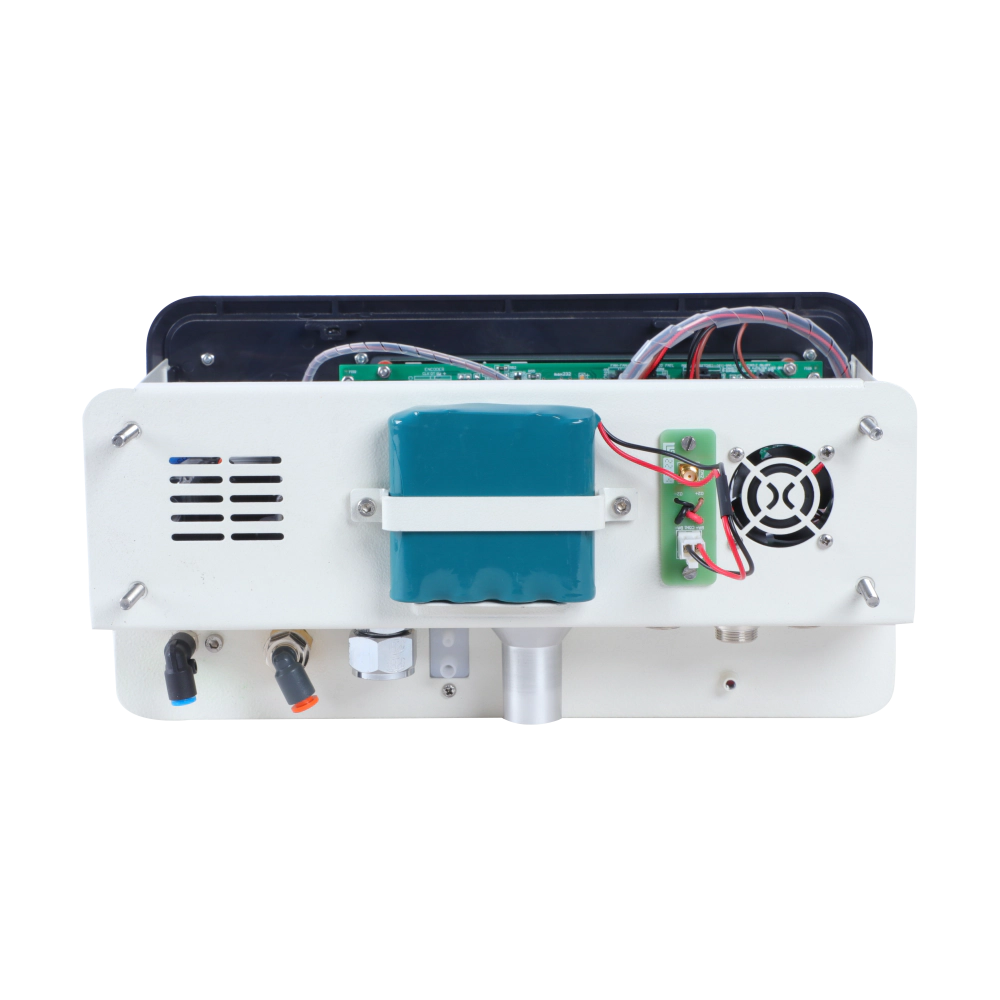

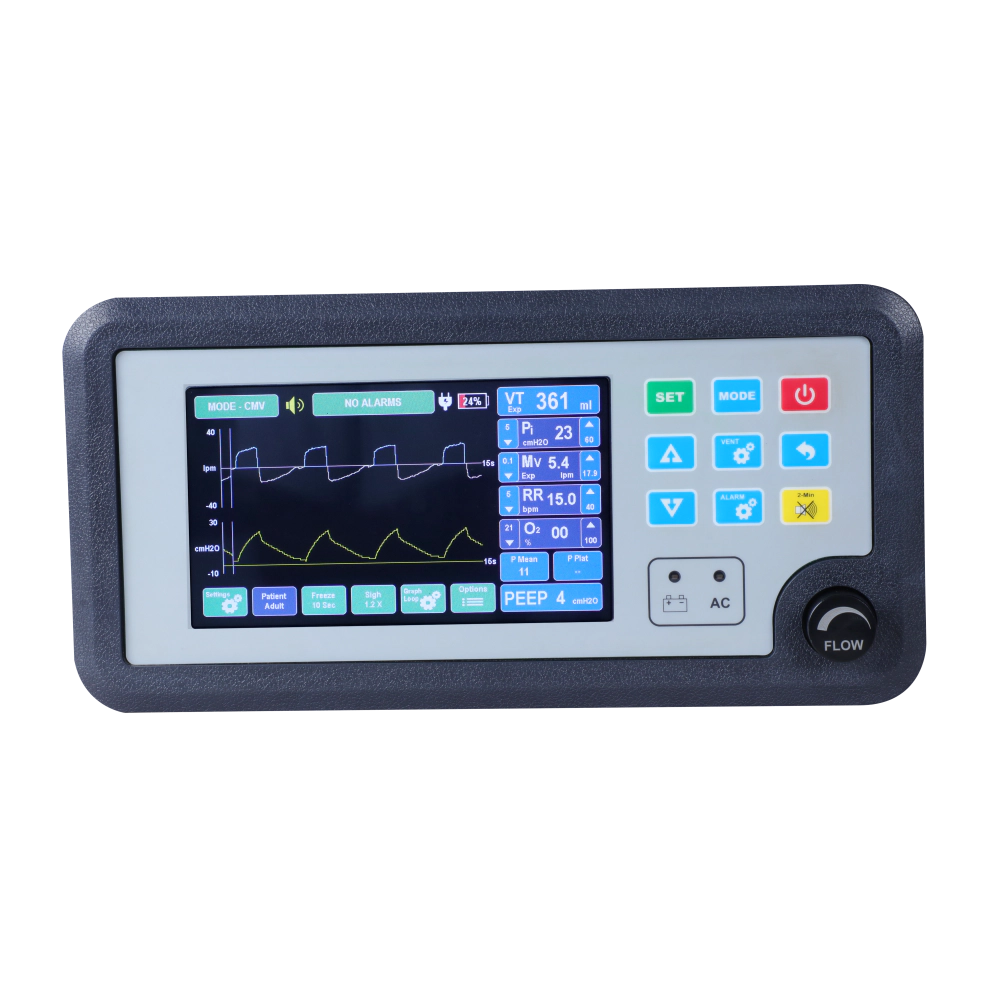

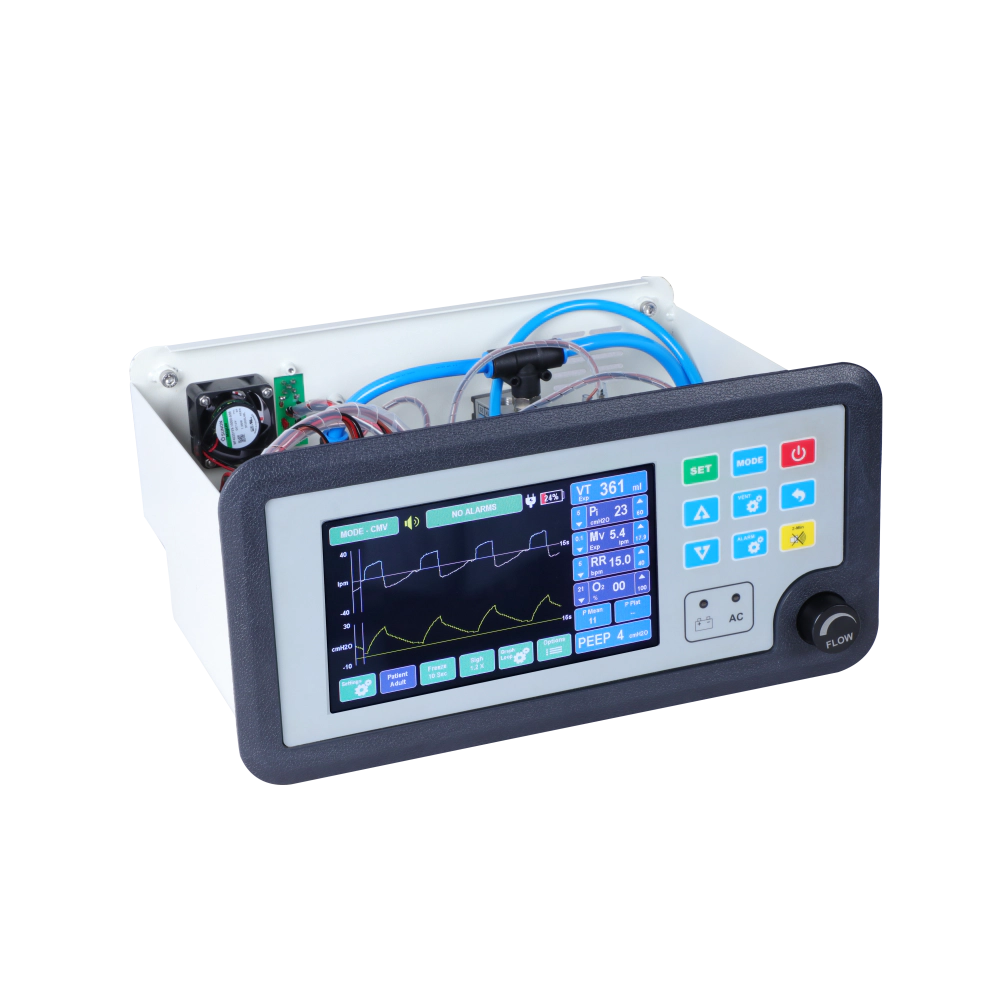

Anesthesia Ventilator AVS-150-WS
The AVS-150-WS, a sophisticated microprocessor-based anesthesia ventilator, offers user-friendly operation for both adult and pediatric patients. Its 7-inch TFT touch screen display provides clear visualization of flow, volume, and pressure graphs and loops. Equipped with a lithium-ion battery backup for up to 2 hours, AVS-150-WS ensures uninterrupted ventilation. This versatile ventilator supports various modes, including CMV, ACMV, SIMV, PLV, BAG & Standby, making it compatible with all types of anesthesia machines and Alveonic ACS-1 or any other OEM circle absorbers, the AVS-150-WS is a versatile and reliable solution for surgical procedures.
PARAMETERS | AVS-150-WS |
Mode of Operation | CMV, ACMV, SIMV, PLV, BAG & Standby |
Patient Type | Adult and Child [Selectable] |
I:E Ratio | 4:1 to 1:4 |
Plateau | 0 to 50% |
Trigger | 0.5 to 5.0 cmH2O |
Tidal Volume | 50 to 1500 ml |
Respiratory Rate | 1 to 40 Bpm |
Ti | 0.3 to 8.0 Sec |
Pi | 5 to 60 cmH2O |
Backup Mode | CMV |
Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, Pi, P Mean, P Plat, PEEP Obtained |
Alarms | Low and High for Pressure, RR, Minute Volume and FIO2, Active patient, Patient disconnected, Driving Gas failure, low battery indication, Apnea, Oxygen Failure (Optional) |
Loop Types | Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure [Selectable Any Two] |
Graph Types | Flow , Pressure & Volume[Selectable Any Two] |
Flow Sensor | External |
Circle Absorber | ACS-1 or any OEM |
Display | 7″ TFT with touch Screen |
Power Input | 20 W |
Gas Input Pressure | 3~6 Bar |
Battery Backup | 2 hours (Lithium-ion) |
Dimension | 316 x 250 x 155 mm ( L x W x H) |
