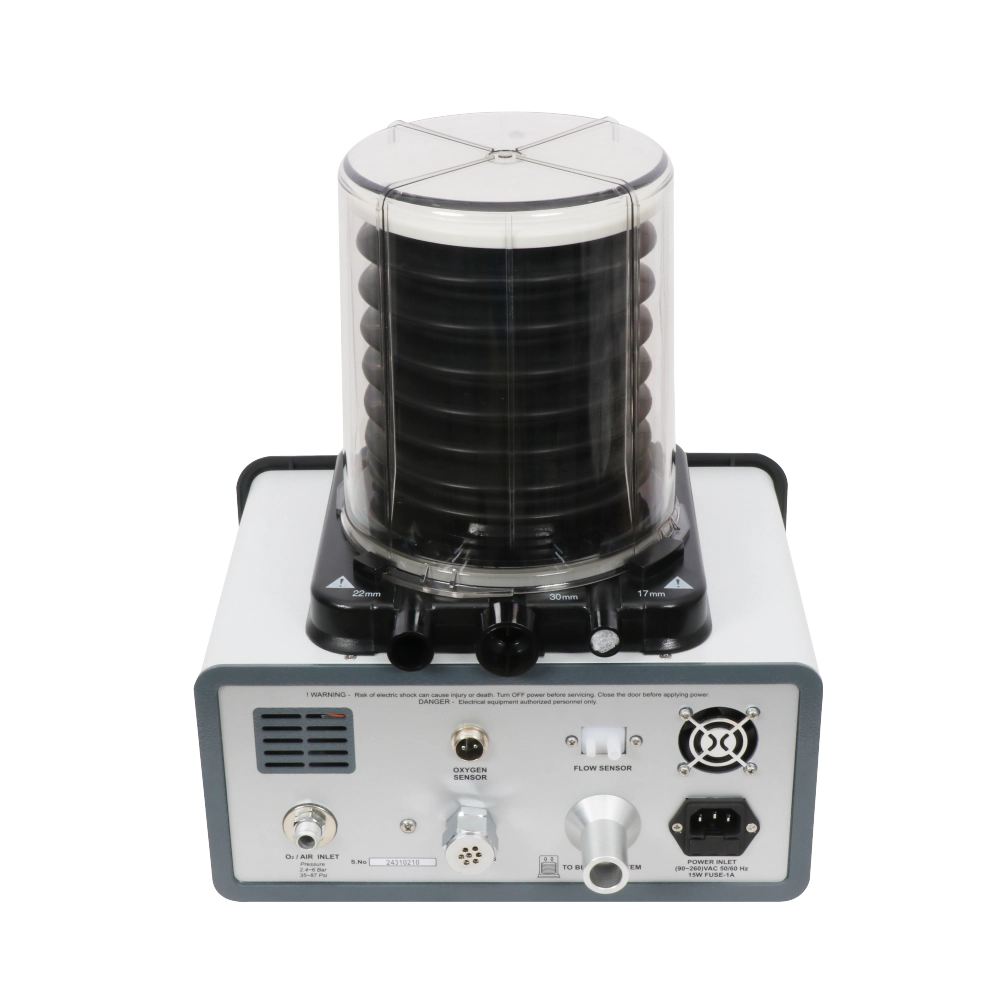

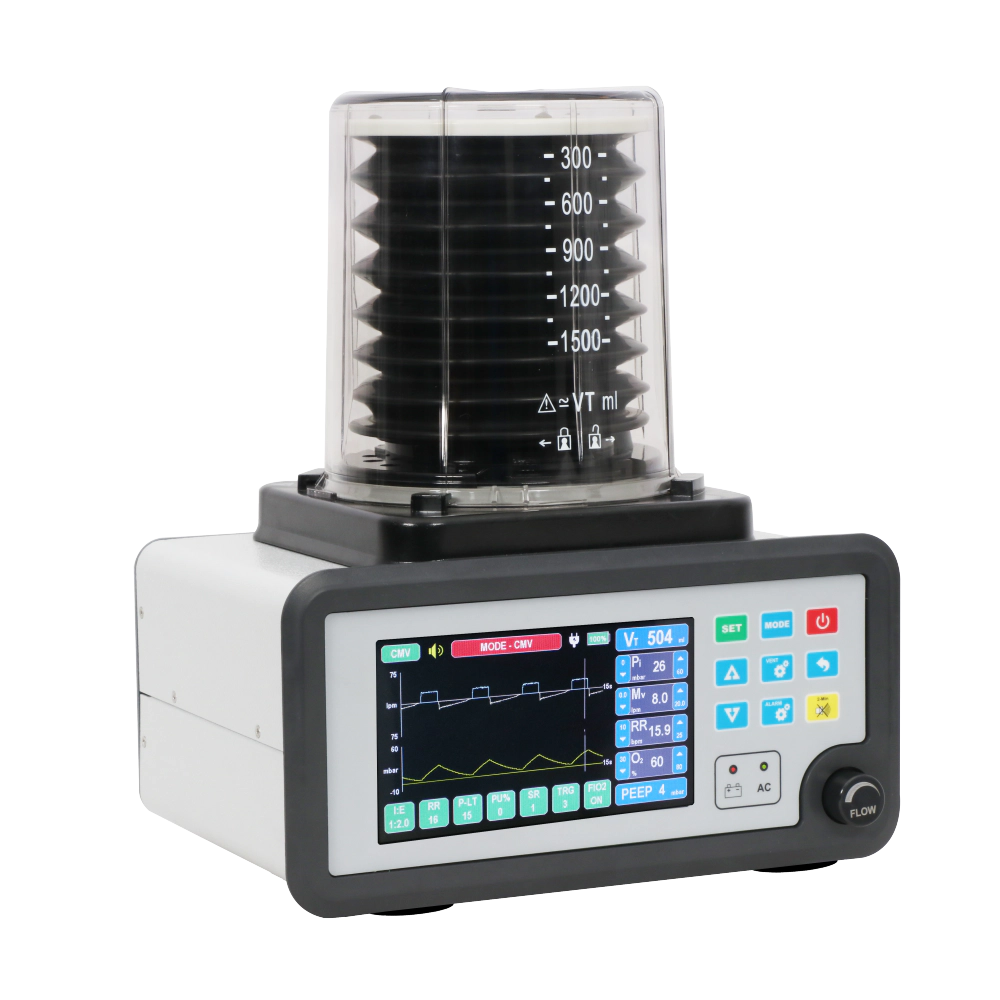

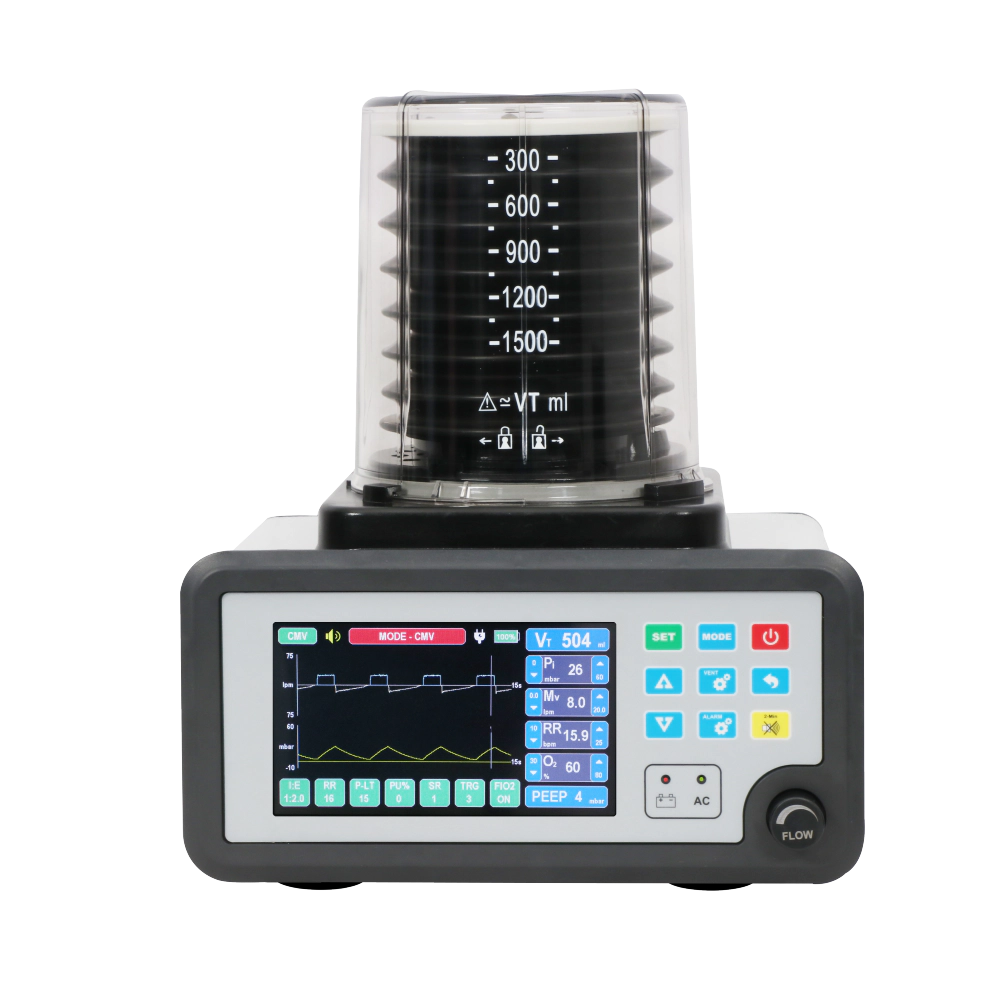

Anesthesia Ventilator
AVS-150
The AVS-150 is an advanced anesthesia ventilator that offers precise volume and time-cycled ventilation for adult and pediatric patients. Its user-friendly interface features a 7-inch TFT touchscreen display and a lithium-ion battery backup for up to 2 hours. The AVS-150 supports various ventilation modes, including CMV, ACMV, SIMV, PLV, BAG, and Standby. Compatible with a wide range of anesthesia machines, the AVS-150 is a versatile and reliable solution for surgical procedures.
PARAMETERS | AVS-150 |
Mode of Operation | CMV, ACMV, SIMV, PLV, BAG & Standby |
Patient Type | Adult and Child [Selectable] |
I:E Ratio | 4:1 to 1:4 |
Plateau | 0 to 50% |
Trigger | 0.5 to 5.0 cmH2O |
Tidal Volume | 50 to 1500 ml |
Respiratory Rate | 1 to 40 Bpm |
Ti | 0.3 to 8.0 Sec |
Pi | 5 to 60 cmH2O |
Backup Mode | CMV |
Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, Pi, P Mean, P Plat, PEEP Obtained |
Alarms | Low and High for Pressure, RR, Minute Volume and FIO2, Active patient, Patient disconnected, Driving Gas failure, low battery indication, Apnea |
Loop Types | Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure [Selectable Any Two] |
Graph Types | Flow , Pressure & Volume[Selectable Any Two] |
Display | 7″ TFT with touch Screen |
Power Input | 20 W |
Gas Input Pressure | 3~6 Bar |
Battery Backup | 2 hours (Lithium-ion) |
Dimension | 316 x 270 x 374 mm ( L x W x H) |
